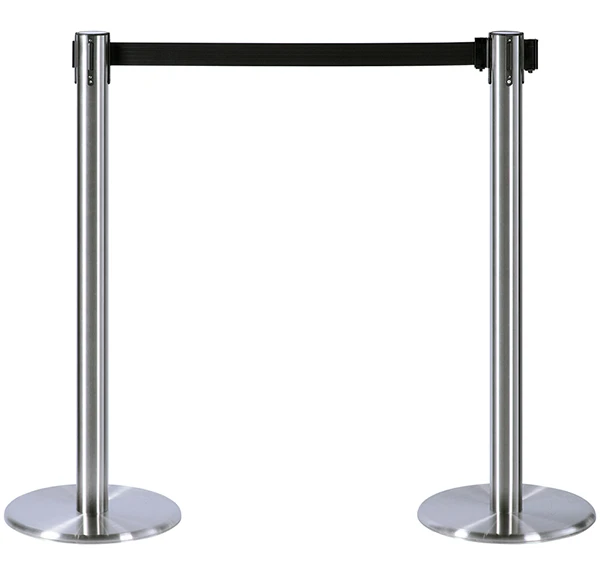

BB01 Belt railing
5 years warranty
+29
Description and design options
Description and design options
The BB01 belt railing is designed to form passage zones, arrange queues, and divide premises into zones at shopping complexes, retail outlets, business centers, hotels, airports, cinemas, hotels, museums, and mass cultural events.
All-weather design
The BB01 belt railings are made of stainless steel, which not only contributes to their elegant appearance but also ensures their corrosion resistance under adverse environmental conditions.
Delivery set
- Railing post with a weight
- Spool with a barrier belt

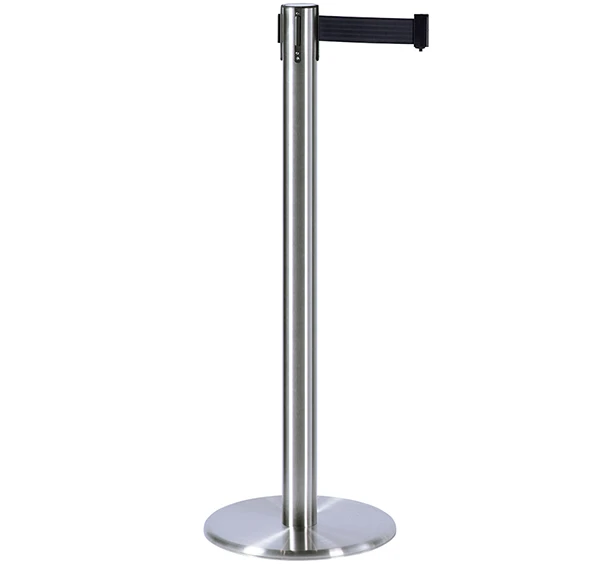

Post
The optimum height of the railing post prevents people from passing under or over the railing. The edges of the post’s flat base taper to the floor, allowing suitcases, baby transport, and wheelchairs to roll freely without causing queues.
The post can tilt up to 35 degrees before overturning.

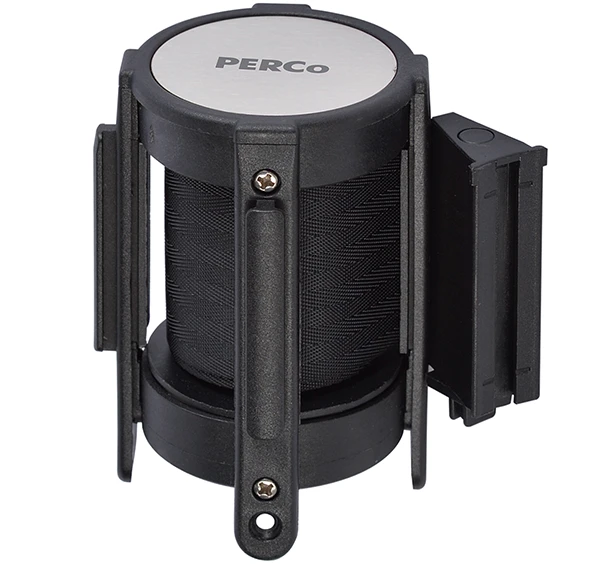

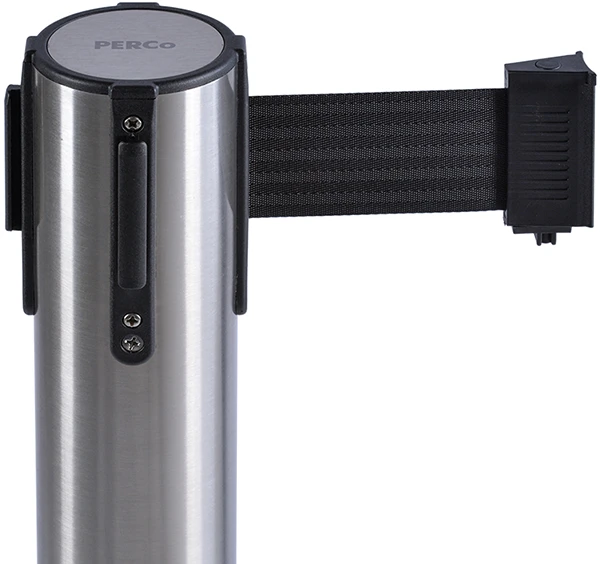

Spool
The spool has a return mechanism with smooth retraction (a brake). An anti-tamper lock prevents accidental release of the belt from the post.
Protection against damage to premises
The post base is outfitted with a rubber ring to protect the floor from damage.
Safety
The railing’s low center of gravity ensures resistance to overturning during passage. The spool’s slow retraction mechanism contributes to a high level of safety for passers-by.
Expand
Characteristics
Weight material: cast iron
Spool material: durable plastic
Post, base disk, and flange (cap) material: stainless steel (AISI 304)
Post height
1000 mm
Post diameter
63.5 mm
Post wall thickness
1.2 mm
Base shape
flat
Base disk diameter
350 mm
Base height
25 mm
Base weight
7.5 kg
Total weight of the railing
9.5 kg
Belt length
3 m
Belt width
48 mm
Belt color
black
