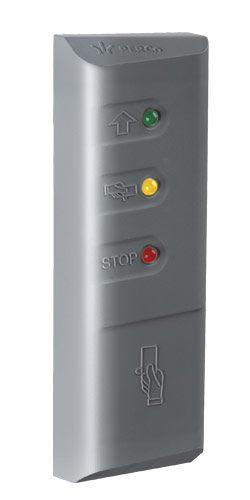

IR03 Proximity card reader

operating voltage
operating voltage
temperature range
temperature range
protection rating
protection rating
standard interface
standard interface

Description and design options

Description and design options

The IR03 reader is used to control access to the object and works in conjunction with a universal turnstile / lock controller.

The operating temperature range of the reader makes it possible to use it outside.

Range of code reading:
– for EMM cards - 9 cm,
– for HID cards - 7 cm.

Expand

Characteristics

Operating voltage
12 V DC
Consumption current
80 mA
Dimensions (length×width×height)
20×50×145 mm
Operating temperature range
from -40 °C to +40 °C
IP Code
IP67
Standard interface
RS-485
Reading range
7-9 cm
