ST-02 Speed gate with standard sliding panels

Delivery set

• two sections with built-in electronics
• two sliding panels made of tempered glass
• RC-panel

Additional equipment installation

Special poles and brackets are provided to ensure the convenient installation of additional equipment.

ST-02 Speed gates allow installing readers and controllers under the section top covers. The zones for presenting cards are indicated with the corresponding pictograms.

Passage zone formation

ST-02 is available in two versions: a 600 mm standard passage zone or an extended one of 900 mm. The extended version provides convenient access for people with reduced mobility and ensures free passage in case of an emergency.

To increase the number of passage zones, STD-02 double-sided sections can be installed. Each double-sided section allows organizing one extra passage zone.

The speed gates can also be completed with railings produced in the same design.

Safety

The tracking system is equipped with two levels of infrared sensors (30 pairs are located on the upper level and 30 – on the lower one) which guarantees safety, high throughput, and prevents tailgating.

The control board provides emergency unblocking upon receiving the Fire Alarm signal (Fire Alarm input).

Speed gate operation

ST-02 Speed gate can be a part of an ACS as an operating device or a standalone unit controlled by RC-panel or WRC (optional). The RC-panel is included in the standard delivery set.

The ability to select the control mode (pulse or potential) ensures correct operation in access control systems of any manufacturer.

The speed gate supports two main operation modes: normally-closed and normally-open.

In the normally-closed mode, the sliding panels remain closed upon power failure.

In the normally-open mode, the sliding panels are open and close if an unauthorized passage is attempted. Upon power failure, the sliding panels remain open.

The product provides independent control of the passage zone in two directions. The infrared sensors built into the speed gate sections record the actual fact of passage and its direction, which ensures correct accounting of working hours in ACS.

The control board inside the speed gate housing provides a complete set of control modes. The control board has inputs to connect sound indication (siren) and outputs to connect remote indication blocks.

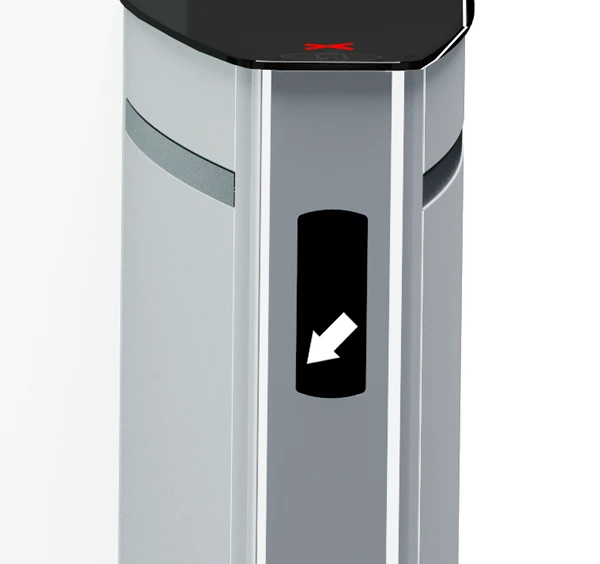

Indication

The turnstile state indicators (open/closed) are located on the section top covers. The passage direction indicators are located on the front ends of the turnstile sections.
